Accepted at CVPR 2026

DRM: Diffusion-based Reward Model
With Step-wise Guidance

TL;DR. A pre-trained diffusion model is itself a powerful reward model. DRM scores any noisy intermediate latent, enabling dense per-step rewards for RL alignment (Step-GRPO) and a training-free quality booster (Step-wise Sampling).

Jaxon Zhang^1*, Binxin Yang², Hubery Yin², Chen Li², Jing LYU²

¹Peking University ²WeChat Vision, Tencent Inc.

^*Work done during an internship at WeChat Vision, Tencent Inc.

Paper / arXiv (Coming Soon) Code Models (Coming Soon)

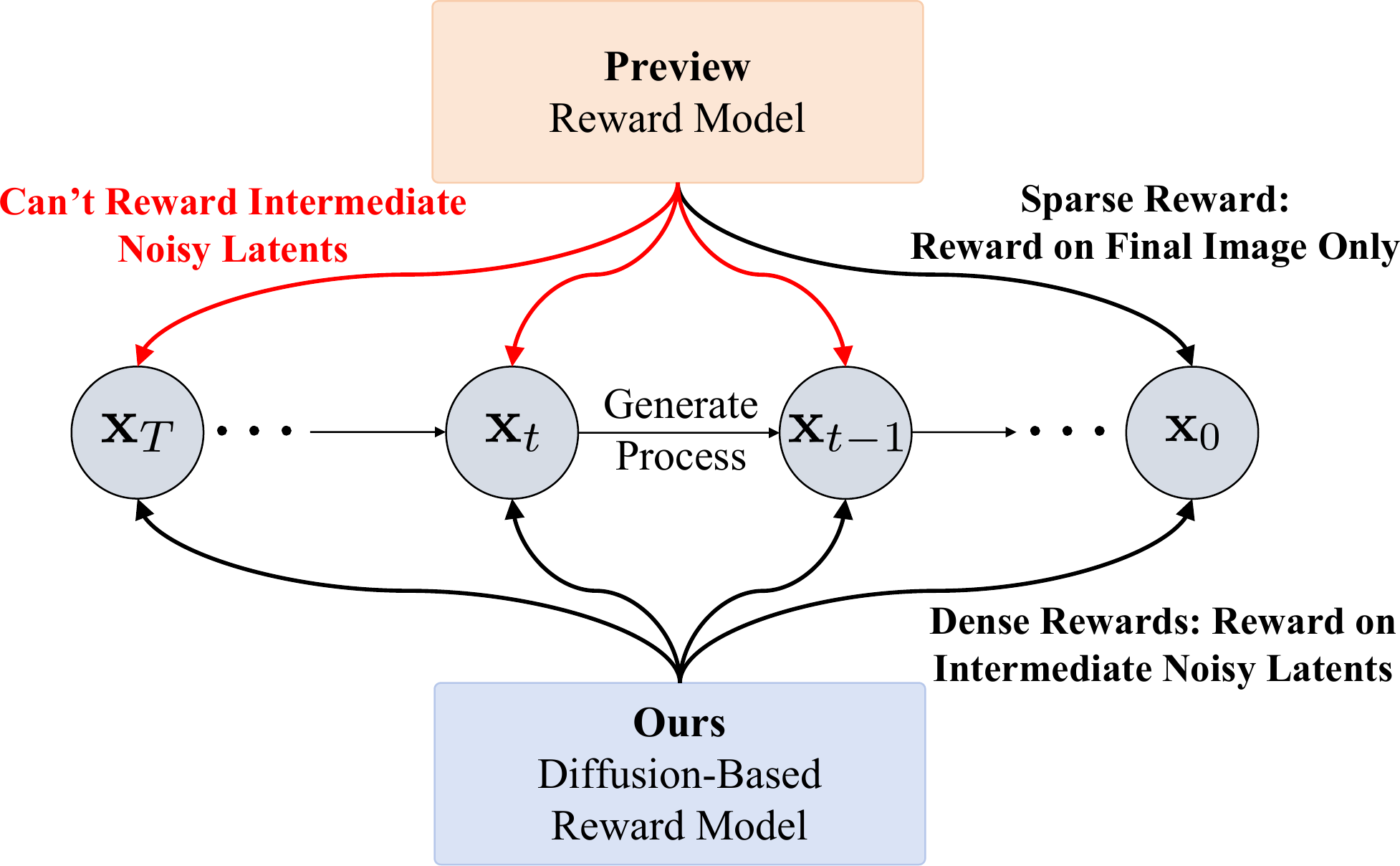

Teaser: DRM provides fine-grained reward along the entire denoising trajectory — **Comparison between previous reward models and DRM.** Existing reward models treat the generation process as a black box, providing only a single, terminal reward based on the final output. Our DRM offers fine-grained rewards for any noisy latent along the entire denoising trajectory.

Contributions

01 Reward Model

A diffusion model is a reward model.

We introduce DRM, repurposing a pre-trained diffusion model as the evaluative backbone. It inherits a deep understanding of aesthetics and composition, and uniquely scores noisy intermediate latents at any stage of generation.

02 Optimization

Step-GRPO: dense per-step rewards.

A reinforcement learning algorithm that resolves the credit-assignment problem in diffusion alignment. Step-GRPO uses DRM's per-step rewards for far more stable and efficient policy optimization than terminal-reward GRPO.

03 Inference

Step-wise Sampling: training-free.

A plug-and-play inference strategy. At each denoising step we explore multiple SDE branches and let DRM greedily steer the trajectory toward higher-quality outcomes — no fine-tuning required.

Method

1. Diffusion-based Reward Model (DRM)

DRM predicts human preferences by leveraging the intermediate features from the Diffusion Transformer (DiT) of a pre-trained diffusion model. We initialize the backbone from SD3.5-Medium (2.5B parameters) and truncate the last three transformer layers so that the parameter count matches HPSv3-2B for fair comparison.

Given a noisy latent $x_{t}$ at timestep $t$, the truncated DiT produces visual features $f_{v} \in \mathbb{R}^{L \times d}$ that are fed into a lightweight reward head: an MLP projects $f_v$ into a lower-dimensional space, after which the features are reshaped into a 2D map and processed by a small convolutional network, followed by pooling and a final linear projection to produce the preference score $s$.

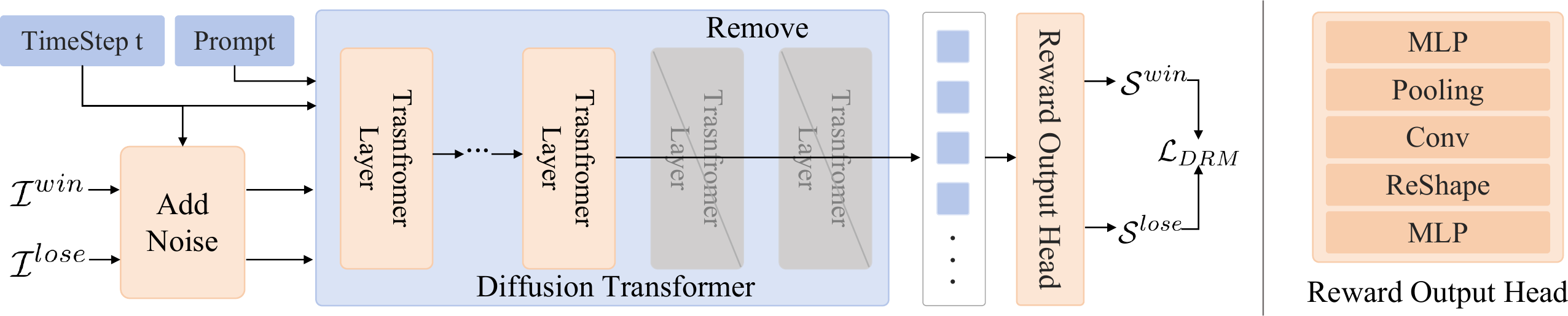

DRM architecture and training pipeline — **Overview of the Diffusion-based Reward Model (DRM).** *(Left)* Training pipeline: DRM takes a pair of preferred and dispreferred images, both corrupted with noise at a specific timestep $t$, and predicts their reward scores. The model is optimized via the Bradley–Terry preference loss. *(Right)* The detailed architecture of our Reward Output Head.

DRM is trained on triplets $(I^{\text{win}}, I^{\text{lose}}, p)$ from HPDv3, Pick-A-Pic and ImageReward (1.4M pairs total). For a randomly sampled timestep $t$, both images are corrupted via the forward diffusion process and scored:

\mathcal{L}_{\text{DRM}} = -\log \sigma\!\left( s^{\text{win}} - s^{\text{lose}} \right).

2. Step-wise GRPO (Step-GRPO)

Standard GRPO treats the multi-step generation process as a black box and applies the terminal reward uniformly to every timestep — an imprecise credit assignment that ignores the varying contribution of each step. Because DRM is initialized from a diffusion backbone, it can score noisy latents at any timestep, enabling dense per-step rewards.

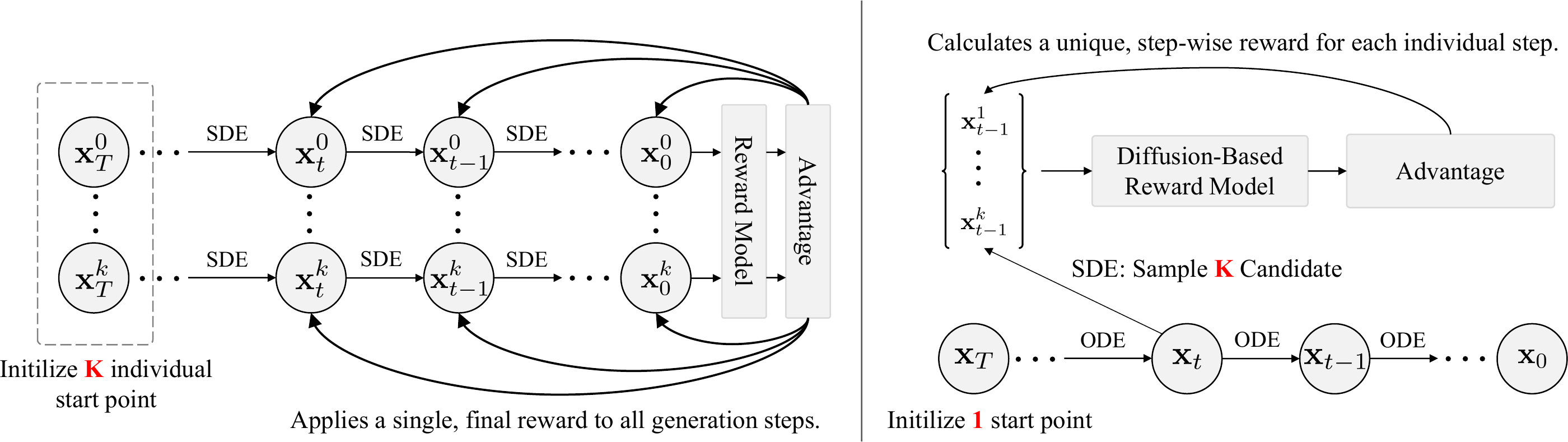

**GRPO vs. Step-wise GRPO.** *(Left)* Naive GRPO relies on a single terminal reward computed at $t{=}0$ and broadcasts it uniformly to all preceding steps. *(Right)* Step-GRPO branches out $k$ candidate samples at each timestep via SDE and uses DRM to compute a precise, step-specific reward and advantage.

At each reverse-diffusion step $t$, starting from $x_{t+1}$, we draw $k$ SDE candidates $\{x_t^i\}_{i=1}^k$ and score them with DRM. The immediate advantage for each candidate is normalized within the local group:

\hat A_t^i = \frac{R(x_t^i, c) - \mathrm{mean}\!\left(\{R(x_t^i, c)\}_{i=1}^{k}\right)} {\mathrm{std}\!\left(\{R(x_t^i, c)\}_{i=1}^{k}\right)}.

            Unlike conventional GRPO, this advantage is a local quantity that scores the decision
            at the current timestep — yielding a much more direct and fine-grained policy-gradient signal.


3. Step-wise Sampling (Training-free)

DRM also doubles as an inference-time quality booster. Conventional deterministic samplers follow a single fixed trajectory, so any early-step error compounds to the final image. Step-wise Sampling implements an “explore-and-select” mechanism: at each timestep we (1) explore by drawing $k$ SDE successors, (2) score each with DRM, and (3) greedily commit to the highest-scoring branch.

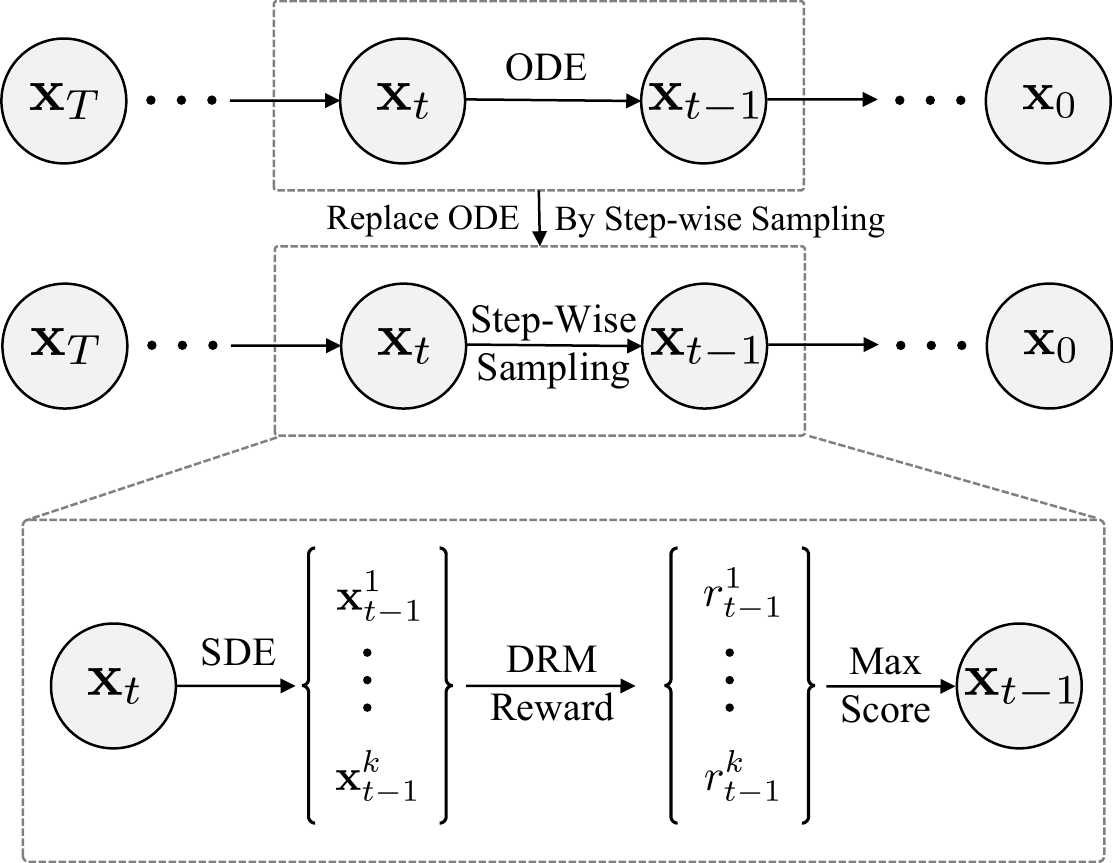

Step-wise Sampling overview — **Overview of Step-wise Sampling.** At each step $t$, we branch into $k$ candidates via SDE. The DRM scores them and the top-scoring latent continues the trajectory.

x_{t-1} = \arg\max_{x_{t-1}^{i}}\; R(x_{t-1}^{i}, c).

Experiments

Reward Modeling Accuracy

We evaluate DRM against leading reward models on standard preference benchmarks. Despite using only 2B parameters, DRM significantly outperforms the similarly-sized VLM-based HPSv3-2B and is competitive with the much larger 7B variant — strong evidence that a diffusion backbone is a more parameter-efficient route to reward modeling.

Preference prediction accuracy (%). Bold = best, underlined = second-best. DRM achieves the best **PickScore** and second-best **HPDv3** with only 2B parameters.
Model	Size	ImageReward ↑	PickScore ↑	HPDv2 ↑	HPDv3 ↑
CLIP ViT-H/14	—	57.1	60.8	65.1	48.6
Aesthetic Predictor	—	57.4	56.8	76.8	59.9
ImageReward	—	65.1	61.1	74.0	58.6
PickScore	—	61.6	70.5	79.8	65.6
HPSv2	—	65.7	63.8	83.3	65.3
MPS	—	67.5	63.1	83.5	64.3
HPSv3-2B	2B	57.9	63.6	80.8	66.3
HPSv3-7B	7B	66.8	72.8	85.4	76.9
DRM (Ours)	2B	64.1	73.4	82.2	74.0

Step-GRPO: Faster Convergence, Higher Ceiling

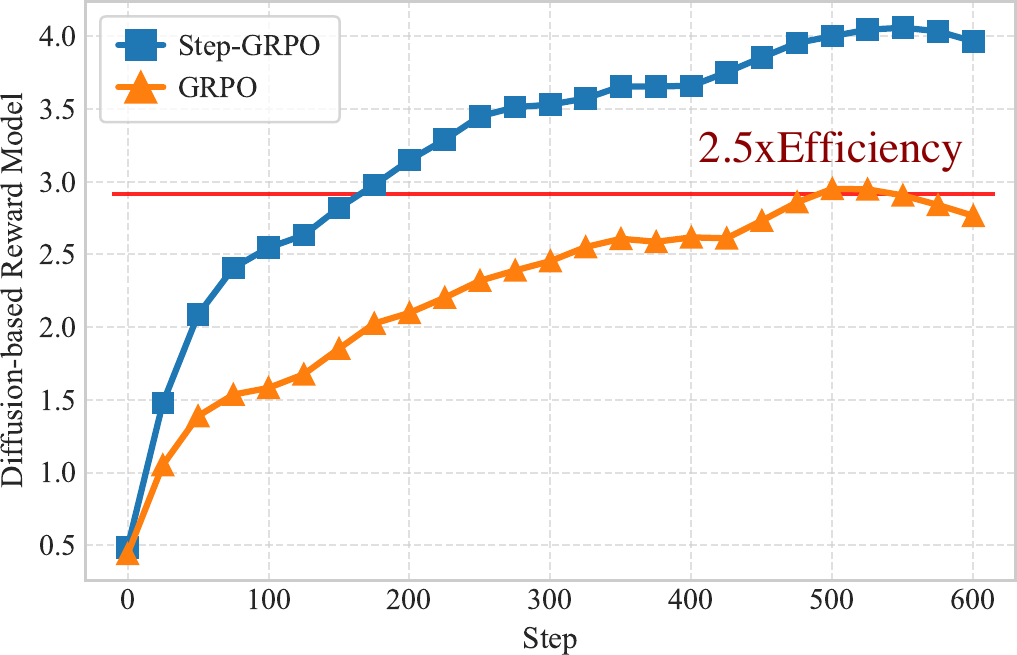

**Reward curves for various RL algorithms optimized using our DRM.** Step-GRPO not only reaches a higher final reward but also converges **2.5× faster (in steps)** than the standard GRPO baseline.

We RL-finetune SD3.5-Medium with PickScore, HPSv3 or DRM as reward, all under the same Flow-GRPO recipe; for DRM we additionally evaluate the Step-GRPO algorithm.

Performance of SD3.5-Medium fine-tuned with different reward models. **DRM + Step-GRPO** sets a new state-of-the-art on all three benchmarks.
Method	ImageReward ↑	PickScore ↑	HPSv3 ↑
SD3.5-Medium (base)	1.01	16.76	8.95
+ PickScore & GRPO	1.14	16.94	9.64
+ HPSv3 & GRPO	1.15	16.90	9.71
+ DRM & GRPO	1.14	16.95	10.07
+ DRM & Step-GRPO (Ours)	1.17	17.04	10.28

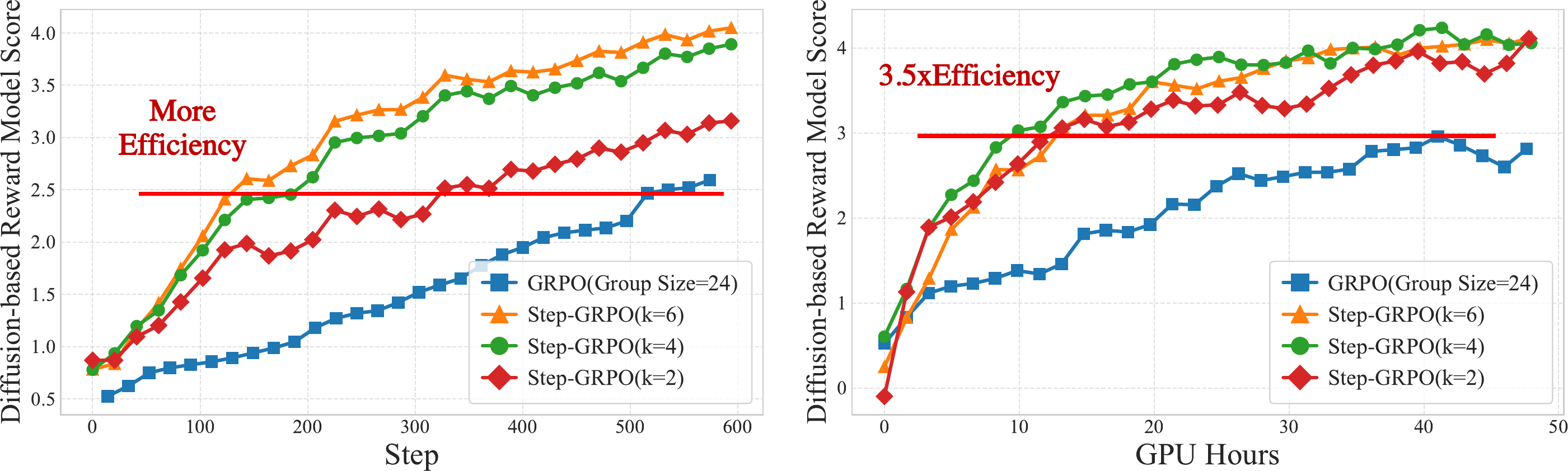

Reward growth vs. steps and GPU hours — **Reward curves with steps (left) and GPU hours (right) on the x-axis.** Even with the smallest group size $k{=}2$, Step-GRPO already outperforms GRPO, and converges roughly **3.5× faster in GPU-hours**.

Qualitative Comparison

Step-wise Sampling: Training-free Plug-and-Play

Step-wise Sampling needs no fine-tuning: simply branch into $k$ SDE candidates per denoising step and use DRM to greedily pick the best one. We sweep $k \in \{1, 2, 4, 6\}$ on the same protocol as Step-GRPO.

Performance of SD3.5-Medium with Step-wise Sampling (512×512, 50 steps, bfloat16). All preference metrics improve with $k$, and LPIPS confirms diversity is preserved.
$k$	Time (s) ↓	ImageReward ↑	PickScore ↑	HPSv3 ↑	LPIPS ↑
1 (base)	2.88	1.01	16.76	8.95	0.650
2	5.63	1.08	16.84	9.02	0.661
4	7.75	1.14	16.81	9.32	0.663
6	9.83	1.15	16.93	9.49	0.662

Step-wise Sampling qualitative results — **Step-wise Sampling enhances both prompt fidelity and aesthetic quality.** Comparison of SD3.5-Medium outputs without/with Step-wise Sampling on the same prompts.

More Visual Results

More visual comparisons — Additional visual comparisons across baselines and our full method (DRM + Step-GRPO + Step-wise Sampling).

Supplementary gallery generated by our final model.
